Implementation of Reliable and Efficient Reporting Mechanism with Randomized Energy-Conservation Protocol in Wireless Sensor Networks

Introduction

Energy efficiency is one of the major concerns in wireless sensor networks, since it impacts the network lifetime. In this paper, we investigate the relationship between sensor network performance, particularly its lifetime, and the number of active reporting nodes N by using both analytical and simulation approaches. We first demonstrate that decreasing the number of reporting nodes increases the number of reports that need to be sent to the sink in order to achieve the desired information reliability regarding a detected event. On one side, we show that reducing the number of reporting nodes reduces the probability of collision occurrence. Based on these results and as the first main contribution, we derive the optimal number of reporting nodes Nopt energy that minimizes the energy consumed to report reliably the occurrence of an event. In other words, we prove that limiting the reporting tasks of a detected event to a small subset of sensor nodes (i.e., Nopt energy ), instead of using all the sensor nodes in the event area, enables significant energy conservation. Furthermore, with regard to the latency properties, we show that the average time required to reliably report an event is a convex function of the number of reporting nodes, where the minimum is obtained for a given Nopt latency ¼ Nopt energy . Consequently and as the second main contribution, we demonstrate that the fastest way to reliably report an event does not correspond to the optimal way of consuming the scarce network energy. The trade-off between these two requirements is sensor application specific, depending on this one particular need in terms of quality of service. To the best of our knowledge, we are the first to tackle the energy efficiency problem from this perspective while considering the energy-reliability-latency trade-offs.

About This Project

This project addresses a randomized energy-conservation protocol that seeks to build resilient sensor networks by decreasing the number of reporting nodes increases the number of reports that need to be sent to the sink in order to achieve the desired information reliability regarding a detected event. The proposed protocol extends the network lifetime by maintaining a necessary set of working nodes and turning off redundant ones, which wake up after randomized sleeping times and re- place failed ones when needed. The fully localized operations of this protocol are based on each individual node’s observation of its local environment but do not require per neighbor state at any node; this allows this protocol to scale to very dense node deployment. The proposed protocol is highly robust against node failures due to its simple operations and randomized design; it also ensures asymptotic connectivity.

The proposed protocol will be simulated on ns2 and its performance will be analyzed.



The Sleep and Wakeup Mechanism for Reliable and Efficient Reporting

Proposed WSN works for ad hoc sensor networks that consist of large numbers of densely-deployed, small, inexpensive sensors. Such networks find applications in forest fire monitoring, military surveillance, ocean environmental sampling, etc. Due to adverse external factors, these nodes may suffer frequent and unpredictable failures. The network relies on a certain degree of redundancy in working nodes for robust functioning. Nodes are usually deployed at much higher densities than the minimum required for extended system lifetime. We assume that each sensor node can vary its transmission power to choose a power level to cover a circular area given a radius.

The goal of proposed WSN is to extend system lifetime by exploiting the high redundancy in deployment, while being robust against severe, unpredictable node failures. The basic approach is to turn off redundant nodes. Two main issues are how to decide which nodes to turn off and how long they sleep. The two components of proposed WSN, Probing Environment and Adaptive Sleeping, address these issues, respectively.

To decide which sensors to turn off, nodes need to coordinate among themselves. This is typically achieved based on each node’s knowledge about its neighborhood, such as each neighbor’s location, connectivity, etc. However, in a dense network with frequent, unpredictable node failures, keeping track of each neighbor’s status can be very difficult; the con- strained memory and energy resources of each node further aggravate the situation. We thus strive to avoid per neighbor state, eliminating the burden of maintaining such state. The real challenge is, without the knowledge of each neighbor, how do nodes achieve distributed coordination? This is what Probing Environment answers. It utilizes a probing mechanism by which a node discovers whether a working one exists in a certain probing range and decides whether it should be turned off. It determines the topology of working nodes while requiring minimum amount of knowledge of local neighborhood.

The next observation is that, how long nodes sleep decides how quick a dead working node can be replaced because only when sleeping nodes wake up can they replace dead working neighbors. Each unexpected death of working nodes causes an interruption in sensing and communication. The lengths of such interruptions should be kept within what are tolerable from the application’s perspective. Adaptive Sleeping decides when a sleeping node should wake up. It keeps the aggregate wake up rate of the sleeping neighbors of each working node at appropriate levels desired by the application, in order to meet application requirements and minimize the control overhead.

Design and Working of Proposed WSN

Each node in proposed WSN has three operation modes: Sleeping, Probing and Working. After nodes are deployed, they are initially in the Sleeping mode.

Each node sleeps for an exponentially distributed duration generated according to a probability density function (PDF

After a node wakes up, it enters the Probing mode. A probing node seeks to detect whether any working node is present within a certain probing range Rp .

The probing node uses an appropriate transmission power to broadcast a PROBE message within its local probing range Rp .

Any working node(s) within that range should respond with a REPLY message, also sent within the range of Rp .

It is possible that multiple working nodes exist within Rp when a node probes. To reduce collisions, each working node waits for a small random time before it sends back the REPLY.

If the probing node hears a REPLY, it goes back to the Sleeping mode for another random period of time ts , generated according to the same PDF.

If the probing node does not hear any REPLY, it enters the Working mode and starts functioning. Thus nodes can only work when they are far enough from existing working ones.

It is possible that PROBE and REPLY messages are still lost due to factors such as collisions or link errors. In such cases, a probing node supposed to sleep again will start working, unnecessarily wasting energy. To correct such errors, working node react to REPLYs sent by its working neighbors that respond to probing nodes. Because REPLYs are also sent within a distance of Rp , two working nodes are less than Rp away if they can hear the REPLYs from each other. One of them should be turned off.

In practice, if either of the two can turn off the other, they may take turns to work and cause an unstable working node topology. Many routing protocols have to rebuild routing state in new working nodes and suffer from unstable topologies.

Preliminary Simulation Results and Analysis

For the purpose of this study, we have experimented with various kinds of simulations on NS2 to understand and implement the proposed protocol for sensor Network.

The Simulation Parameters

The following list shows some of the important simulation parameters



DefaultTransmissionPower 0.060 ;# 60mW
DefaultReceptionPower 0.012 ;#12mW
DefaultIdlePower 0.012 ;#12mW
DefaultSleepModePower 0.003 ;#0.03mW
ReceptionAndIdleTime 5000 ;# in seconds

NetworkField 500
InitDataSendTime 1 ;# in seconds
FinishTime 10 ;# in seconds
SensorNodeSize 10 ;# 5m is only for visibility of the node in NAM
AgentPortAddress 40
MaxRange 15 ;#Communication Range of the Sensor (in meters)
TotalSensorNodes 100 ;#number of sensor Nodes 160,320,480,640and800
DataInterval 10 ;# in seconds
DataSize 1000 ;#25 in bytes. Increase it if you want to ‘see’ the packet in NAM
PercentageOfWakeupNodes 15
PercentageOfFailure 5
FailureRate 1 ;#
ProbeBroadcastAddress -1
DefaultProbingRange 3
ProbeReplyWaitTime 0.2

The Simulation Scripts

Some of the Important Parameters

set opt(chan) Channel/WirelessChannel ;# channel type
set opt(prop) Propagation/TwoRayGround ;# radio-propagation model
set opt(ant) Antenna/OmniAntenna ;# Antenna type
set opt(ll) LL ;# Link layer type
set opt(ifq) Queue/DropTail/PriQueue ;# Interface queue type
set opt(ifqlen) 10 ;# max packet in ifq
set opt(netif) Phy/WirelessPhy ;# network interface type
set opt(mac) Mac/802_11 ;# MAC type
set opt(rp1) DSDV
set opt(energymodel) EnergyModel ;
set opt(initialenergy) 60 ;# Initial energy in Joules

set opt(DefaultTransmissionPower) 0.060 ;# 60mW
set opt(DefaultReceptionPower) 0.012 ;#12mW
set opt(DefaultIdlePower) 0.012 ;#12mW
set opt(DefaultSleepModePower) 0.003 ;#0.03mW

set SleepingDuration 50 ;# in seconds
set MaxWakeupDuration 20
set NetworkField 500 ;#
set InitDataSendTime 1 ;# in seconds
set FinishTime 200 ;# in seconds
set SensorNodeSize 10 ;# 5m is only for visibility of the node in NAM
set AgentPortAddress 40
set MaxRange 15 ;#Communication Range of the Sensor (in meters)
set TotalSensorNodes 100 ;#number of sensor Nodes 50,100,150,200, ...
set DataInterval 10 ;# in seconds
set DataSize 100 ;#25 in bytes. Increase it if you want to 'see' the packet in NAM
set PercentageOfWakeupNodes 15
set PercentageOfFailure 5
set FailureRate 1 ;#

set TotalRecievedDataPackets 0
set RecordingInterval 5
set TotalSentPackets 0


Phy/WirelessPhy set L_ 1.0




Setting Node Parameters

set topo [new Topography]

$topo load_flatgrid $NetworkField $NetworkField

#create-god $TotalSensorNodes
set god_ [create-god $TotalSensorNodes]

$ns node-config -adhocRouting $opt(rp1) \
-llType $opt(ll) \
-macType $opt(mac) \
-ifqType $opt(ifq) \
-ifqLen $opt(ifqlen) \
-antType $opt(ant) \
-propType $opt(prop) \
-phyType $opt(netif) \
-topoInstance $topo \
-channelType $opt(chan) \
-agentTrace ON \
-routerTrace ON \
-macTrace ON \
-movementTrace ON \
-energyModel $opt(energymodel) \
-idlePower $opt(DefaultIdlePower) \
-rxPower $opt(DefaultReceptionPower) \
-txPower $opt(DefaultTransmissionPower) \
-sleepPower $opt(DefaultSleepModePower) \
-transitionPower $opt(DefaultTransmissionPower) \
-transitionTime 0.005 \
-initialEnergy $opt(initialenergy)



Designing the Protocol SensorAgent  by inheriting it from MessagePassing Agent



Sorry!!!. Some sections are hidden; because, you are only having restricted access to this article.

While getting paid support/assistance for your research from Charles, you may get an access key/password to some articles. If you are having the access key/password to this particular article, then please enter it below to unlock the restricted section of this article.

If your research is related to this area, and you want to get paid support/assistance from Charles, then you may start a 'free' research discussion with Charles.

for {set idx 0} {$idx < [expr $TotalSensorNodes] } {incr idx} { set node($idx) [$ns node ] $god_ new_node $node($idx) #puts $idx $node($idx) random-motion 1 ;# disable random motion set xval [expr [$rng integer [expr $NetworkField-$SensorNodeSize]] + $SensorNodeSize] set yval [expr [$rng integer [expr $NetworkField-$SensorNodeSize]] + $SensorNodeSize] $node($idx) set X_ $xval $node($idx) set Y_ $yval $node($idx) set Z_ 0.0 $node($idx) color "green" if { $idx == 0 } { $ns at [$ns now] "$node($idx) color blue" $ns initial_node_pos $node($idx) [expr $SensorNodeSize * 2 ] } else { $ns initial_node_pos $node($idx) $SensorNodeSize } #puts "$xval $yval" $ns at [$ns now] "$node($idx) setdest $xval $yval 99999" # attach a new PEAS to on $AgentPortAddress set SAgent($idx) [new Agent/SensorAgent] $node($idx) attach $SAgent($idx) $AgentPortAddress $SAgent($idx) set TotalSentDataPackets 0 # need to tell the agent about their link layers (for broadcast) set ll [$node($idx) set ll_(0)] #$ns at 0.0 "$SAgent($idx) set-ll $ll" if {$idx == 0 } { $SAgent($idx) set ModeOfTheNode "Waking" } $SAgent($idx) set ProbeReplyCount 0 if { $idx > 0 } { set Jitter [expr ([$rng integer 100]+1.0 )/100.0] if { [ expr [$rng integer 100] ] > $PercentageOfWakeupNodes } { #$ns at [$ns now] "$node($idx) off" $SAgent($idx) set ModeOfTheNode "NotDefined" set tSleepingDuration [expr [$rng integer $SleepingDuration] + $Jitter ] set Jitter [expr ([$rng integer 100]+1.0 )/10.0] $ns at [expr [$ns now] + $Jitter ] "$SAgent($idx) PutNodeIntoSleepMode $tSleepingDuration" } else { $SAgent($idx) set ModeOfTheNode "Waking" $ns at [expr [$ns now] + $Jitter ] "$SAgent($idx) WakeupNode" } $ns at [expr $InitDataSendTime + $Jitter + [$rng integer $DataInterval] ] "$SAgent($idx) ScheduleDataTransmission" } } Agent/SensorAgent instproc WakeupNode {} { $self instvar node_ ModeOfTheNode global ns node rng MaxWakeupDuration SleepingDuration set WakeupTime [$ns now] $ns at $WakeupTime "$node_ on" set id [$node_ node-addr] $ns at $WakeupTime "$node_ delete-mark $id" set ModeOfTheNode "Waking" $ns at $WakeupTime "$ns trace-annotate \"$WakeupTime :Wakingup Sensor Node :[$node_ node-addr]\"" puts "$WakeupTime :Wakingup Sensor Node :[$node_ node-addr]" set Jitter [expr ([$rng integer 100]+1.0 )/10.0] $ns at [expr [$ns now] + $Jitter + $MaxWakeupDuration ] "$self PutNodeIntoSleepMode $SleepingDuration" } Agent/SensorAgent instproc PutNodeIntoSleepMode {SleepDuration} { $self instvar node_ ModeOfTheNode global ns node rng set SleepingTime [$ns now] $ns at $SleepingTime "$node_ off" set ModeOfTheNode "Sleeping" $ns at $SleepingTime "$ns trace-annotate \"$SleepingTime :Putting Sensor Node [$node_ node-addr] to Sleep Mode for $SleepDuration Seconds\"" puts "$SleepingTime :Putting Sensor Node [$node_ node-addr] to Sleep Mode for $SleepDuration Seconds" set id [$node_ node-addr] $ns at $SleepingTime "$node_ add-mark $id blue circle" #sheduling wakeup probe $ns at [expr $SleepingTime + $SleepDuration] "$self WakeupNode" } Agent/SensorAgent instproc ScheduleDataTransmission {} { $self instvar node_ ModeOfTheNode TotalSentDataPackets global ns AgentPortAddress DataSize rng TransmissionJitter DataInterval set TransmissionJitter [expr [$rng integer 100] / 10.0] if { $ModeOfTheNode == "Waking" } { # it is a Wakeup Node so send sensor data to BS and Re-schedule Data Transmission set CurrentSensorData "DATA" $ns at [$ns now] "$self SendDataToBS 100 $CurrentSensorData" set TotalSentDataPackets [expr $TotalSentDataPackets +1 ] $ns at [expr [$ns now] + $DataInterval + $TransmissionJitter] "$self ScheduleDataTransmission" } else { $ns at [expr [$ns now] + $DataInterval + $TransmissionJitter] "$self ScheduleDataTransmission" } } Agent/SensorAgent instproc SendDataToBS {size Value} { $self instvar node_ global ns node AgentPortAddress $self sendto $size $Value 0 $AgentPortAddress } Agent/SensorAgent instproc recv {source sport size message} { $self instvar node_ ProbeReplyCount global ns AgentPortAddress rng TotalRecievedDataPackets #puts $message $ns trace-annotate "[$ns now] :BS Recieved data from $source" if { $message == "DATA" } { puts "[$ns now] : BS Recieved data from $source" set TotalRecievedDataPackets [expr $TotalRecievedDataPackets +1 ] } }





Creating Nodes and Setting up the Traffic

for {set i 0} {$i <$TotalSensorNodes } {incr i} {
set tt [expr 0 + [ $SAgent($i) set TotalSentDataPackets ] ]
set TotalSentPackets [expr $TotalSentPackets + $tt ]
$SAgent($i) set TotalSentDataPackets 0

set Status [$SAgent($i) set ModeOfTheNode ]

if { $Status == "Waking" } {
set PWakingNodes [expr $PWakingNodes +1 ]
}
}

set PWakingNodes [expr $PWakingNodes / $TotalSensorNodes.0 * 100.0]

puts $fdSentDataPackets "$now $TotalSentPackets"
puts $fdPercentageOfWakingNodes "$now $PWakingNodes"

set pdf [expr $TotalRecievedDataPackets / ( $TotalSentPackets+1.0 ) * 100.0 ]
puts $fdPaketDeliveryRatio "$now $pdf"

set TotalSentPackets 0
set TotalRecievedDataPackets 0

#Re-Schedule The Procedure
$ns at [expr $now+$time] "record"

}

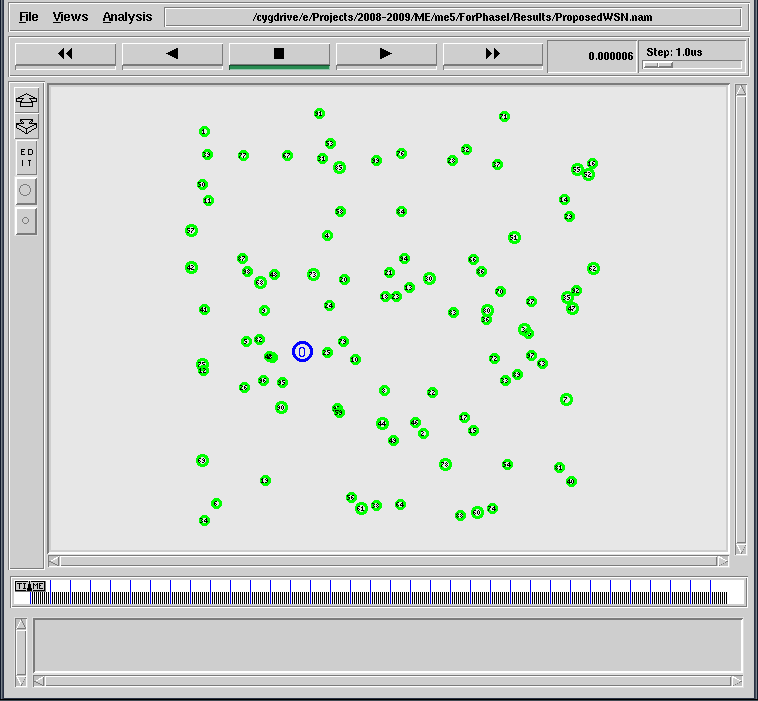

The Nam Output

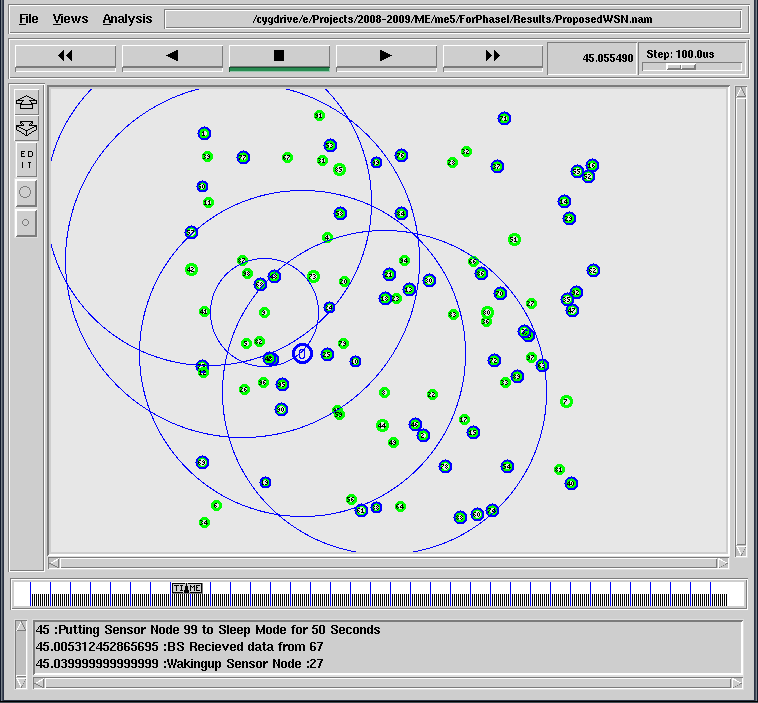

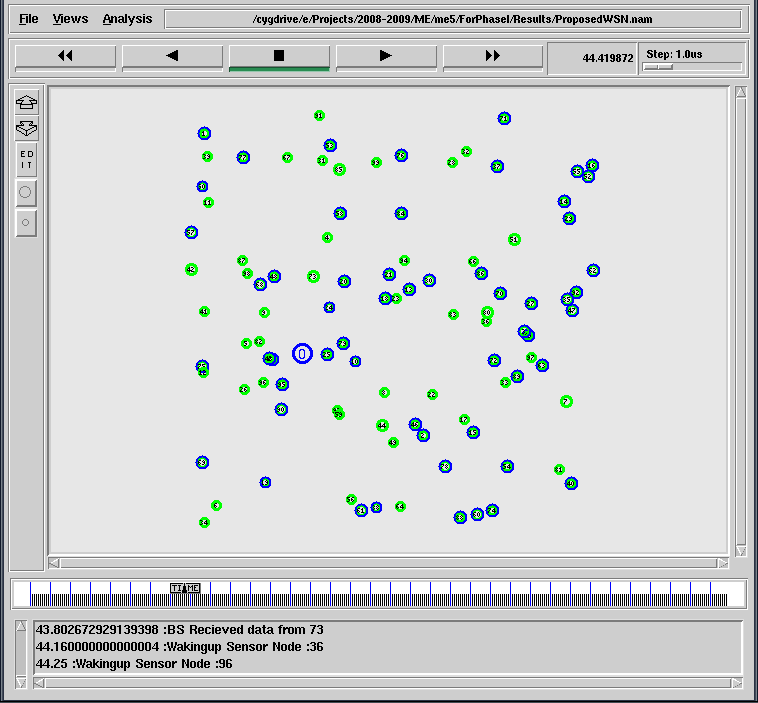

In the above Nam output, the Green Color nodes are the Wakeup Sensor Nodes. The Nodes Marked with Blue (Except 0 – The BS Node) are Sleeping Sensor Nodes. The Blue Node 0 is the Base Station Node to Which All the sensor nodes will send the data.

The Wakeup Sensor Nodes Periodically sending data to Base Station.



The Console Output Showing Sensor Network Events



51.379999999999995 :Wakingup Sensor Node :77
51.79179112367661 : BS Recieved data from 64
52.109999999999999 :Putting Sensor Node 31 to Sleep Mode for 50 Seconds
52.207506662123478 : BS Recieved data from 57
52.469999999999999 :Putting Sensor Node 49 to Sleep Mode for 50 Seconds
52.502153656019331 : BS Recieved data from 42
52.620000000000005 :Putting Sensor Node 9 to Sleep Mode for 50 Seconds
52.649999999999999 :Putting Sensor Node 73 to Sleep Mode for 50 Seconds
52.729999999999997 :Wakingup Sensor Node :53
53.105612376295703 : BS Recieved data from 66
53.120000000000005 :Wakingup Sensor Node :16
53.216321693577562 : BS Recieved data from 55
53.305168367341317 : BS Recieved data from 96
53.779999999999994 :Wakingup Sensor Node :13
53.805672499799357 : BS Recieved data from 7
54.510000000000005 :Putting Sensor Node 32 to Sleep Mode for 50 Seconds
54.605590001395996 : BS Recieved data from 23
54.708389549639392 : BS Recieved data from 16
54.799999999999997 :Putting Sensor Node 93 to Sleep Mode for 50 Seconds
55.030000000000001 :Wakingup Sensor Node :86
55.099999999999994 :Wakingup Sensor Node :76
55.25 :Putting Sensor Node 8 to Sleep Mode for 50 Seconds
55.420000000000002 :Wakingup Sensor Node :38
56.119999999999997 :Putting Sensor Node 97 to Sleep Mode for 50 Seconds
56.219999999999999 :Putting Sensor Node 42 to Sleep Mode for 50 Seconds
56.305032814543068 : BS Recieved data from 53
56.409999999999997 :Putting Sensor Node 81 to Sleep Mode for 50 Seconds
56.604771727980534 : BS Recieved data from 38
57.30571111260457 : BS Recieved data from 39
57.710105696230976 : BS Recieved data from 63
57.805188029050264 : BS Recieved data from 95
57.959999999999994 :Putting Sensor Node 11 to Sleep Mode for 50 Seconds
58 :Wakingup Sensor Node :75
58 :Putting Sensor Node 7 to Sleep Mode for 50 Seconds

……………

……………

……………

191.75999999999999 :Putting Sensor Node 68 to Sleep Mode for 50 Seconds
191.84999999999999 :Wakingup Sensor Node :98
192.30241411151604 : BS Recieved data from 11
192.55000000000001 :Wakingup Sensor Node :66
192.62 :Wakingup Sensor Node :55
193.00217327235995 : BS Recieved data from 41
193.33999999999997 :Wakingup Sensor Node :5
193.49000000000001 :Putting Sensor Node 47 to Sleep Mode for 50 Seconds
193.59000000000003 :Putting Sensor Node 50 to Sleep Mode for 50 Seconds
193.80000000000001 :Wakingup Sensor Node :67
194.20483170078168 : BS Recieved data from 51
194.20808841880364 : BS Recieved data from 82
194.30235328144448 : BS Recieved data from 44
194.31601969785947 : BS Recieved data from 98
194.34999999999999 :Putting Sensor Node 10 to Sleep Mode for 50 Seconds
194.47 :Wakingup Sensor Node :80
194.47999999999999 :Putting Sensor Node 51 to Sleep Mode for 50 Seconds
194.75 :Wakingup Sensor Node :95
194.92928688312782 : BS Recieved data from 73
195.01000000000002 :Putting Sensor Node 83 to Sleep Mode for 50 Seconds
195.16000000000003 :Wakingup Sensor Node :54
195.2047516000018 : BS Recieved data from 94
195.44347912988871 : BS Recieved data from 85
195.51237603848608 : BS Recieved data from 99
195.56528844308914 : BS Recieved data from 97
195.56999999999999 :Wakingup Sensor Node :88
195.6107192227808 : BS Recieved data from 67
195.62412777714579 : BS Recieved data from 33
195.81 :Wakingup Sensor Node :79
196.02000000000001 :Putting Sensor Node 26 to Sleep Mode for 50 Seconds
196.04000000000002 :Wakingup Sensor Node :27
196.40557014478546 : BS Recieved data from 8
196.65000000000001 :Wakingup Sensor Node :96
196.72 :Putting Sensor Node 94 to Sleep Mode for 50 Seconds
197.0022736560193 : BS Recieved data from 42
197.00999999999999 :Putting Sensor Node 31 to Sleep Mode for 50 Seconds
197.20844837430786 : BS Recieved data from 39
197.40223298979794 : BS Recieved data from 20
197.80251361607549 : BS Recieved data from 22
197.94 :Putting Sensor Node 6 to Sleep Mode for 50 Seconds
198.35000000000002 :Putting Sensor Node 73 to Sleep Mode for 50 Seconds
198.61999999999998 :Wakingup Sensor Node :74
198.88331347969896 : BS Recieved data from 87
199.00263320033332 : BS Recieved data from 12
199.09999999999997 :Putting Sensor Node 93 to Sleep Mode for 50 Seconds
199.19999999999999 :Putting Sensor Node 56 to Sleep Mode for 50 Seconds
199.34999999999999 :Wakingup Sensor Node :57
199.68000000000001 :Putting Sensor Node 34 to Sleep Mode for 50 Seconds
199.75 :Putting Sensor Node 4 to Sleep Mode for 50 Seconds





The Graphical Results

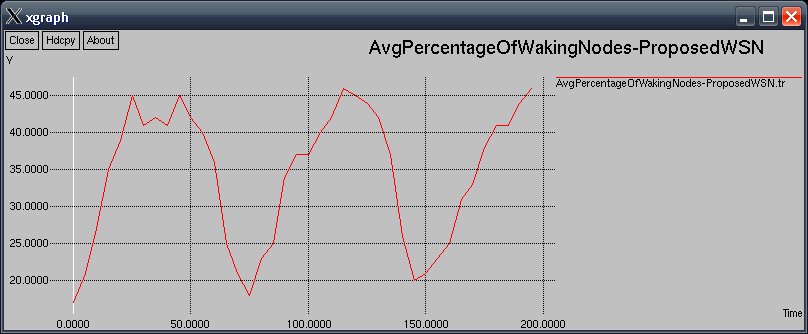

The following graph shows the average percentage of node that were in Wakeup mode over time.

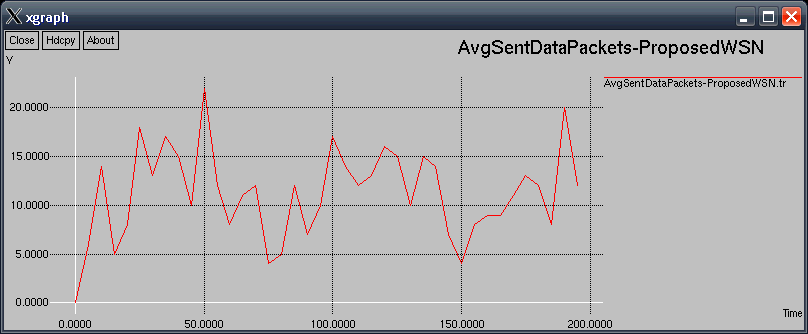

The following graph shows the average sent data packets over time.

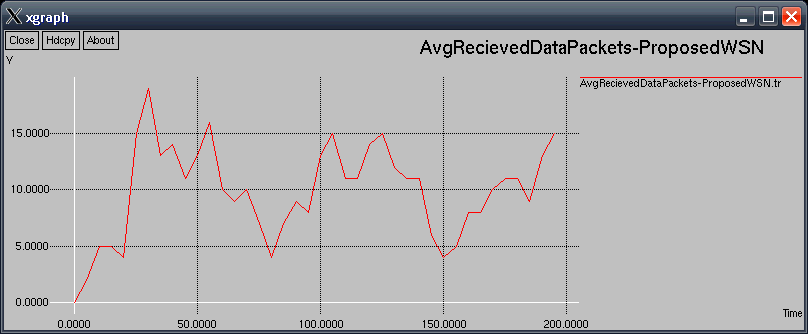

The following graph shows the average recieved data packets over time.



Conclusion

The implementation of reliable and efficient reporting mechanism with randomized energy-conservation protocol in wireless sensor networks has been done on ns-2.  To implement the wakeup and lleep modes in the wireless sensor node, the energy model of ns2 was used. So one should do the necessary change in ns2 and recompile it before running the proposed WSN simulation script.
